Brushless Outrunner Motors

Scorpion Power Systems specializes in the design, development and production of premium Brushless Outrunner Motors. Each part of a Scorpion Motors is designed from the ground up by experienced and passionate engineers with the best quality components available to provide power, efficiency, and reliability which is a grade above the rest!

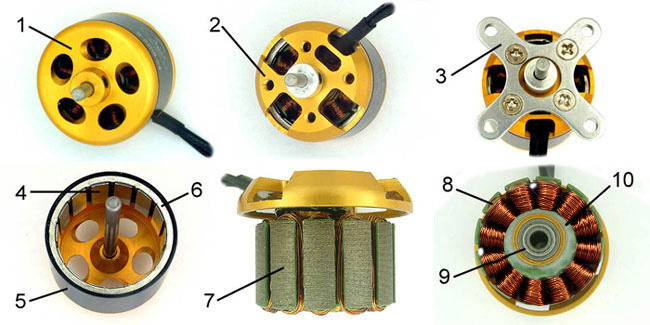

Our motor magnets are custom manufactured from a select premium supplier to be able to withstand the high temperatures associated with high performance applications. The copper wire we use to wind the stators is covered in an imported enamel coating which is rated to 250+ degrees C (482 F), so it can take the heat and keep on performing. Our premium imported 0.2mm Stator sheets provide the highest torque per amp ratios, and best top end performance capabilities. Our imported bearings are of the best quality providing long lasting and reliable run time operation. For everything else, we utilize aviation grade 7075 aluminum and other materials that are CNC machined in-house and anodized for a fit and finish that is second to none.

With a motor and service of this caliber, you would expect to pay an ultra-premium price, but with our efficient manufacturing procedures and streamlined distribution chain, Scorpion motors retail for very affordable prices making them one of the best overall values on the market today. Combine that with our fast production times, customization options, and fantastic customer support, the value of choosing Scorpion Power System will be worth it everytime.

If you want to get ahead of your competitors you will need the best quality motor available at an affordable price. The next time you need a brushless motor, do yourself a favor and buy a Scorpion Brushless motor. You will be glad you did!

Want your entire power system to be as powerful and reliable as the motor is? Combine your Scorpion Motor with one of our Scorpion ESCs to get a matched power system package that provides the power, efficiency, and reliability that your aircraft needs.

A-Series / Airplane Propulsion

The Scorpion A-series Motors were designed for primary use in Aerobatic / UAV Airplanes with direct drive medium speed propellers. The designs focus on amazing peak effiicieny, phenominal power, and good torque.

The motor designs come with rear cross mount, and have options for convinient front side propeller mounting.

Series	Power (w)	Weight (g)	Motor Outer Diameter	Approximate MAX RPM (+/-)	Pole Count	Size Equivalent Class
A-30	500 - 962	134 - 152	36.6	15,000	14P	30E - 32E
A-42	2000 - 3108	288 - 400	50.7	13,500	14P	70E-90E / 15cc - 25cc
A-50	3200 - 4000	523 - 550	59.3	11,000	14P	30cc - 35cc
A-55	3552 - 4662	622 - 655	65	10,500	14P	35cc - 40cc
A-65	4218 - 7200	998 - 1114	78.5	10,000	14P	60cc - 76cc
A-74	4884 - 10000	1300 - 1815	86.8	9,000	28P	85cc - 176cc



HK-Series / Helicopter and
High-Speed UAV
Propulsion

The Scorpion HK-series Motors were designed for primary use in Helicopters with gear reduction units. They also find use in UAV Airplane application which require Ultra High Speed Propellers. The designs focus on Maximum Power Capability at high RPM, High Effiicieny, High Temperature Resistance, and best torque per amps.

The motor designs come stock with rear mounted shaft convinient for pinion mounting, or can be used with propeller adaptor.



HK5 - Series (2023 - Present)

Series	Power (w)	Weight (g)	Motor Outer Diameter	Approximate MAX RPM (+/-)	Pole Count	Rotor Size / Size Class
HK5-32	1500 - 2220	198	40.9	28,500	10P	400mm- 450mm blade size
HK5-40	1330 - 8200	258 - 482	49.5	28,000	10P	500mm - 700mm blade size
HK5-45	5100 - 10200	532	57.5	28,000	10P	650 - 720mm blade size
HK5-50	5772 - 11,500	598	62.8	27,000	10P	690mm - 800mm blade size
HK5-65	5720 - 13500	1075	78.0	20,000	10P	1000mm+ blade size

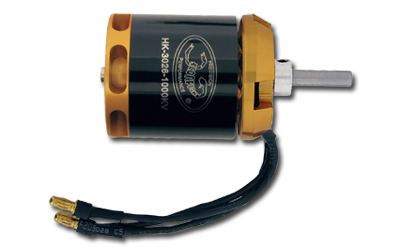

HK - HKIV Motors (2010 - 2022)

Series	Power (w)	Weight (g)	Motor Outer Diameter	Approximate MAX RPM (+/-)	Pole Count	Rotor Size / Size Class
HKII-22	130 - 525	34 - 81	27.9	55,000	6P	200mm - 350mm blade size
HK-25	720-1040	104	31.5	59,000	10P	350mm rotor blade
HK-30	650 - 1600	119 - 153	37.5	25,000	10P	380mm - 420mm blade size
HK-32	1770 - 2000	239	40.9	40,500	6P	420mm - 480mm blade size
HK-35	2900 - 4150	365	45	25,500	10P	600mm - 650mm blade size
HK-40	1900 - 2440	215 - 240	48.9	36,500	10P	480mm rotor blade
HKIV-40	1731 - 5328	310 - 456	49.5	28,000	10P	520mm - 700mm blade size / High Speed UAV
HKII-42	3550-7100	393 - 522	52.3	30,500	10P	600mm - 700mm rotor blade / Battle Bot
HK-45	6200 - 15,000	660 - 719	56.7	30,000	10P	700 - 800 size Speed Heli / Other
HKII-45	4403 - 11,000	515 - 588	56.9	27,000	10P	690mm - 800mm blade size
HKIII-50	3770 - 14,800	501 - 839	62.1	35,600	10P	700mm - 800mm blade size / Battle Bots / Other
HKIV-50	5128 - 7104	785	62.2	25,000	10P	800mm - 850mm blade size
HKII-70	10,000 - 15,000	1915	82.4	16,500	10P	1000+mm blade size / Battle Bots / Other



---

IM - Series / Industrial Multirotor Propulsion

The Scorpion IM-series Motors were designed for primary use in Industrial Multirotors with low RPM, High Efficiency propellers. The design focuses on high peak efficiency, lightweight, and high thrust capabilities.

The designs are suited for propellers mounting directly to the motor rotor face.

Series	Power (w)	Weight (g)	Motor Outer Diameter	Approximate MAX RPM (+/-)	Pole Count	Peak Thrust (KG)	Recommended Prop Size (")	Recommended MTOW Thrust per Arm (KG)
IM-6008	1600	200	68.80	7,000	28P	6.9	21"-22"	1.8 - 3.25
IM-8008	2000	279	87.20	5,000	40P	9.5	27"-28"	2.5 - 4.75
IM-8012	3108	377	87.20	5,750	40P	14.15	27"-28"	3.68 - 7.0
IM-8016	3552	519	87.20	5,000	40P	16.5	29" - 30"	4.34 - 8.25
