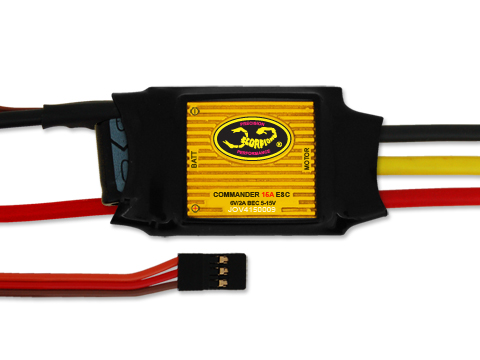

Scorpion Commander 15V 15A ESC LBEC (V2)

Product Description

This ESC is NOT INCLUDED IR Transmitter (Programming Card) & IR RECEIVER

The Commander LBEC (Linear Battery Eliminator Circuit) series features a Linear BEC that will convert the voltage from your battery pack to 5.0 volts to power your receiver and servos. The Commander LBEC will deliver the amps specified on the ESC heat shrink and will operate from 6 to 15 Volts.

The full-featured IR Programming Card allows the user to set the following parameters:

Low Voltage Cut-off (5V to 13.5V at 0.5V increments) no need to select battery type just set the voltage the ESC should work on, by doing this, the ESC will be compatible with any future type of battery designs.

LVC= LOW VOLTAGE CUT: 050 (5V) TO 138(13.8V)

BRK= BRAKE SETTING: 1: NO BRAKE, * 2: VERY SOFT BRAKE, 3: SOFT BRAKE, 4: HARD BRAKE, 5: VERY HARD BRAKE

AIR= ACTIVATE AIRPLANE MODE*

PCT= PROGRAM CUT TYPE (LVC TYPE): 1: CUT 50%*, 2: NO CUT JUST LED WARNING, 3: PULSE WARNING

MAT= MOTOR ACCELERATION TIME DELAY: 1: 0.15* Seconds, 2: 0.3 Seconds, 3: 0.45 Seconds, 4: 0.7 Seconds, 5: 1.3 Seconds

CAR/B= DISABLED

COP= CURRENT OVERLOAD PROTECTION: 1: PROTECTION ON*, 2: PROTECTION OFF (CHOOSING OPTION 2 WILL VOID WARRANTY)

MAT= MOTOR ACCELERATION TIME DELAY: 1: 0.15 Seconds, 2: 0.3 Seconds*, 3: 0.45 Seconds, 4: 0.7 Seconds, 5: 1.3 Seconds

CAR/B= DISABLED

COP= CURRENT OVERLOAD PROTECTION: 1: PROTECTION ON*, 2: PROTECTION OFF (CHOOSING OPTION 2 WILL VOID WARRANTY)

FREQ= DRIVE FREQUENCY: 1: 8 kHz *

SOFT START DURATION: 1. SHORT 10 Seconds, 2: MEDIUM 15 Seconds*, 3: STRONG 20 Seconds

GOV (P Gain) = POWER GAIN: 1 to 11 (SOFT to HARD), DEFAULT: 5*

SB (I Gain) = CURRENT GAIN: 1 to 8 (INSENSITIVE to SENSITIVE), DEFAULT: 5*

SOFT START DURATIO: 1. SHORT 10 Seconds, 2: MEDIUM 15 Seconds*, 3:STRONG 20 Seconds

*Factory Default
