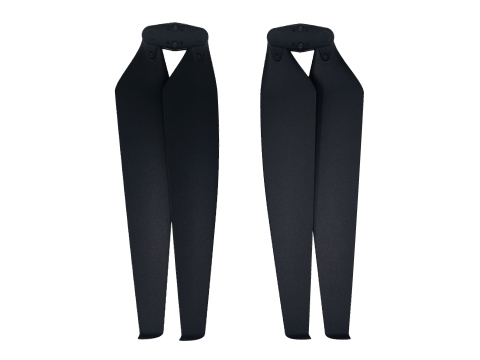

Scorpion PF28 Propeller (4pcs / Quad set / Pusher Config.)

[pf_28_pusher]

This Scorpion PF28 Propeller set, comes with 2 x CW Propeller Sets, and 2 x CCW Propeller Sets. It is configured with pusher orientation.

For custom prop QTY / Configurations, please e-mail support@spihk.com

Scorpion PF28 Propeller (4pcs / Quad set / Pusher Config.) features

Full Dimension

Scorpion PF28 Propeller (4pcs / Quad set / Pusher Config.) Full Dimension

Specifications

Max Rated RPM 4850rpm
Max Rated Thrust 14kg
Diameter 28.125" (714.37mm)
Material Carbon Fiber and Nylon Composite
Storage Humidity <85%
Storage Temperature -10C - 50C
Dynamic Balance Value 2000rpm 50mg
Working Temperature -20C - 60C
Weight (per Prop Assembly) 157.8g (5.56oz)
Recommended Motors IM-8008 / IM-8012

Performance Charts

Scorpion PF28 Propeller (4pcs / Quad set / Pusher Config.) Data chart Scorpion PF28 Propeller (4pcs / Quad set / Pusher Config.) Data chart Scorpion PF28 Propeller (4pcs / Quad set / Pusher Config.) Data chart

Testing reports

Scorpion PF28 Data Report - HQ

Included in the Box

2 x CW Propeller Sets (pusher)
2 x CCW Propeller Sets (pusher)

Weight including packaging

800g
