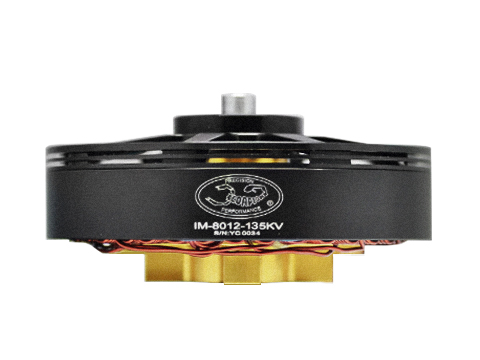

Scorpion IM-8012-135kv

[IM_8012_135]
$ 384.99
In stock

Scorpion IM-Series motors are optimally designed with premium materials to provide efficient, reliable, and powerful electric motors for your multirotor UAV.

The Scorpion IM-8012-135kv is designed as Lifting VTOL motor with 26" sized propellers and has peak thrust up to 13.0kg and a rated spec of 3.0kg - 6.5g of thrust per arm.

Utilizing high quality bearings and ultra hardened Steel Shaft, these motor stand the test of time with long life span between services.

Scorpion IM-8012-135kv features Scorpion IM-8012-135kv features

Specifications

Motor KV 135
Weight (incl. 20cm wire) 377g
Continuous Current 36A
Continuous Power 1600w
Peak Current 70A
Peak Power 3108w



Recommended Prop 26"
Maximum Thrust 13.0kg (28.6lbs)
Recommended Thrust Per Arm 3.00kg - 6.5kg (6.6lbs -14.3lbs)
Recommended Voltage 12s (44.V - 52.2V)



Bearings Dual, Imported NMB R-1980KK 8x19x6
Shaft Diameter 8mm
Stator Diameter 80.0mm
Stator Height 12.0mm
Stator Specifications 0.2mm, Imported
Configuration 36N40P

Performance Charts

Scorpion IM-8012-135kv Data chart Scorpion IM-8012-135kv Data chart Scorpion IM-8012-135kv Data chart

Use Case Applications

Testing reports

IM-8012-115kv - Thrust Data (PDF)

IM-8012-115kv - Thrust Data (.xlsx)

IM-8012 - Flight Time Calculator

Scorpion Power System Performance Report IM-8012-115kv

Weight including packaging

430g
