Scorpion HK5-4030-565kv
- Overview
- Technical specifications

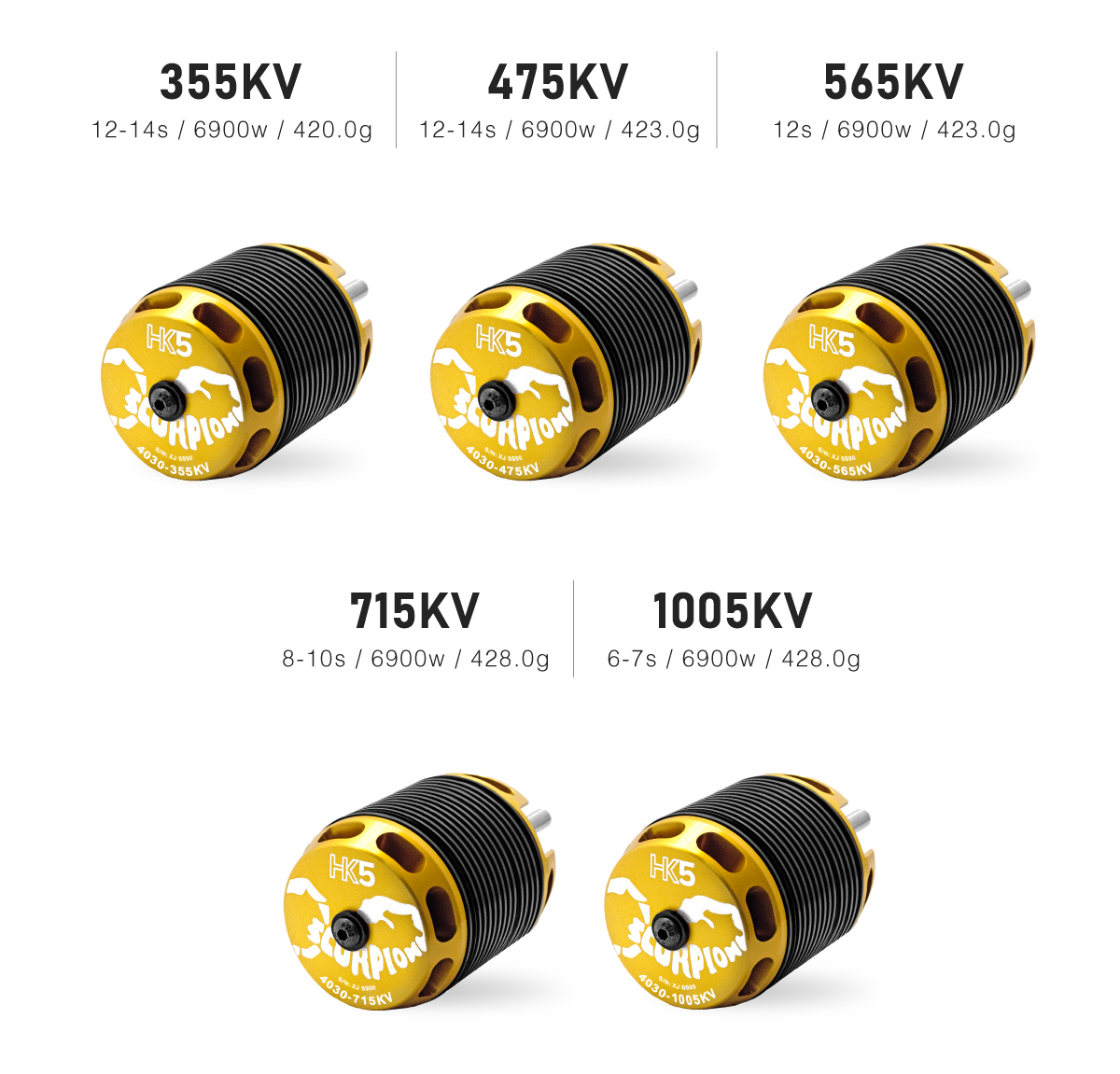

We introduce the fifth generation of Scorpion's renowned and award winning "HK - Series" motors. The Scorpion "HK5 - Series"
The HK5 Series lives up to and exceeds our standards of the most Powerful and Efficient motors, with market leading Torque per Amp capabilities. In addition, on the HK5 series we focused specifically on motor cooling and motor temperature. With an all new Internal Fan design, combined with our proven external centrifugal fan, we have nearly doubled the amount of airflow passing through the motor. The result is much improved cooling, and cooler operating temperatures.
The HK5-4030-565kv is designed for 570-650mm size extreme 3d helicopters, or lightweight 700 class helicopters running on 10s-12s, or other UAV application requiring up to 6900w of power.
Full Dimension
Specifications
| Motor Kv | 565KV RPM/Volt |
| Weight | 423.0 Grams ( 14.92oz) |
| Motor Body Dimensions | 49.5mm x 62.0mm (1.95" x 2.44") |
| External Shaft Dimensions | 5.98mm x 38mm (0.235" x 1.50") |
| Continuous Current | 85 Amps |
| Continuous Power | 3775 Watts |
| Peak Current | 155A (2 seconds) |
| Peak Power | 6900 Watts (2 seconds) |
| Max Lipo Cell* | 12s |
| Stator Diameter | 40 mm (1.57 in) |
| Stator Thickness | 30 mm (1.18 in) |
| No. of Stator Arms | 12 |
| No. of Stator Poles | 10 |
| Motor Wind | 5T Delta |
| Motor Wire | 1.4mm |
| *Higher Cell Count possible with appropriate gear ratio adjustment | |
Testing reports
Included in the Box
1 x HK5-4030 BLDC Motor
3 x Female 4mm Connectors
3 x Heat Shrink
1 x Hardware / Accessory Pack
Weight including packaging
400g
