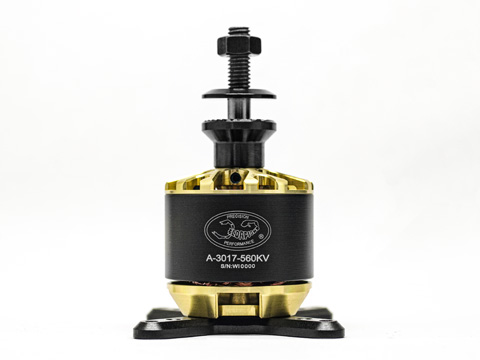

Scorpion A-3017-560kv
$ 77.99
Product Description
The Scorpion A - Series line of motors was designed to be the most optimal and premier choice of motor for your freestyle or UAV airplane. Unlike most motors on the market, who choose one motor / magnet design, and then only change the windings to achieve different KV's (which usually provides one KV range with good results, and average results for the other KV ranges). On the A - series motors we looked at each kv / power range individually. We choose the most optimal magnetic design for each individual kv and implemented it, so that each KV version has the best possible Performance and Efficiency .
The performance and efficiency results are unlike anything we have seen before!
The A-3017 series was designed specifically for 48" Acrobatic Airplanes, or other Sport / UAV airplanes requiring up to 962w of power. Also known as the 30-32E size. For the A-3017 we offer 3 x kv ranges of 560 / 600 / 920 for various applications and various voltage ranges. The 560kv being specifically for smoother sport flying applications, or UAV applications.
Recommended Prop Selection :
12x6 / 12x7 = Efficiency
13x6 = For Standard Flight (not 3D)
13x6.5 / 14x6 = High Alt
Recommended ESC -: Tribunus 06-80A ESC SBEC
Acrobatic Weight Range (560kv) -: 1.3kg - 1.9kg (46oz - 67oz)
Sport / UAV (single engine) Weight Range (560kv): - 2.3kg - 4.6kg (81.1oz - 162oz)
Scorpion Power System - A-3017 {Official Promo Video}
Specifications
| Motor Kv | 560 RPM / Volt |
| Weight (Motor only) | 134g (4.73 oz) |
| Weight (including mount + accessories) | 152g (5.36 oz) |
| Motor Body Dimensions | 36.60 mm x 36.5mm (1.44" x 1.44") |
| External Shaft Diameter | 5.98mm |
| Continuous Current | 23A |
| Continuous Power | 510 Watts |
| Peak Current | 32A |
| Peak Power | 710 Watts |
| Max Rated Lipo Cell** | 6s |
| Stator Diameter | 30.0 mm (1.18 in) |
| Stator Thickness | 17 mm (0.67 in) |
| No. of Stator Arms | 12 |
| Magnet Poles | 14 |
| Motor Wind | 10T/11T Delta |
| Motor Wire | 7-Strand x 0.25 |
| No-Load Current (IO/15V) | 0.69 Amps |
| Motor Internal Resistance (phase-phase) | 80 mΩ |
| Motor Inductance (phase-phase) @ 1khz | 20.0µH |
| *Our ratings are classified as TRUTHFUL. Continuous Current / Power correlates to actual sustainable power levels. Peak Power is for intermittent full throttle usage ranging from 5 - 60 seconds depending on use case and cooling* | |
| **Higher Cell Count possible with smaller prop usage** | |
Included in the Box
1 x A-3017 Motor with prop washer & nut
1 x 44/58mm Cross Mount + Screws
3 x Female Bullet Connectors + heatshrink
3 x Scorpion Stickers
16 x 3x10x1mm thrust spacing washers
4 x M3x10 moutning screws
4 x M3x16 mounting screws
Weight including packaging
250g
